Metal Ceiling System

Product Description

We are one of the leading engineering organizations engaged in offering an utmost range of Metal Ceiling. These callings are used as roofing solution in hospitals, restaurants, petrol pump, airport and hotels. We design these devices with the assistance of latest technologies and state of the art infrastructural facilities from premium grade materials. In addition, we can also customize this Metal Ceiling as per the needs of the clients.

Features:

Further Details:

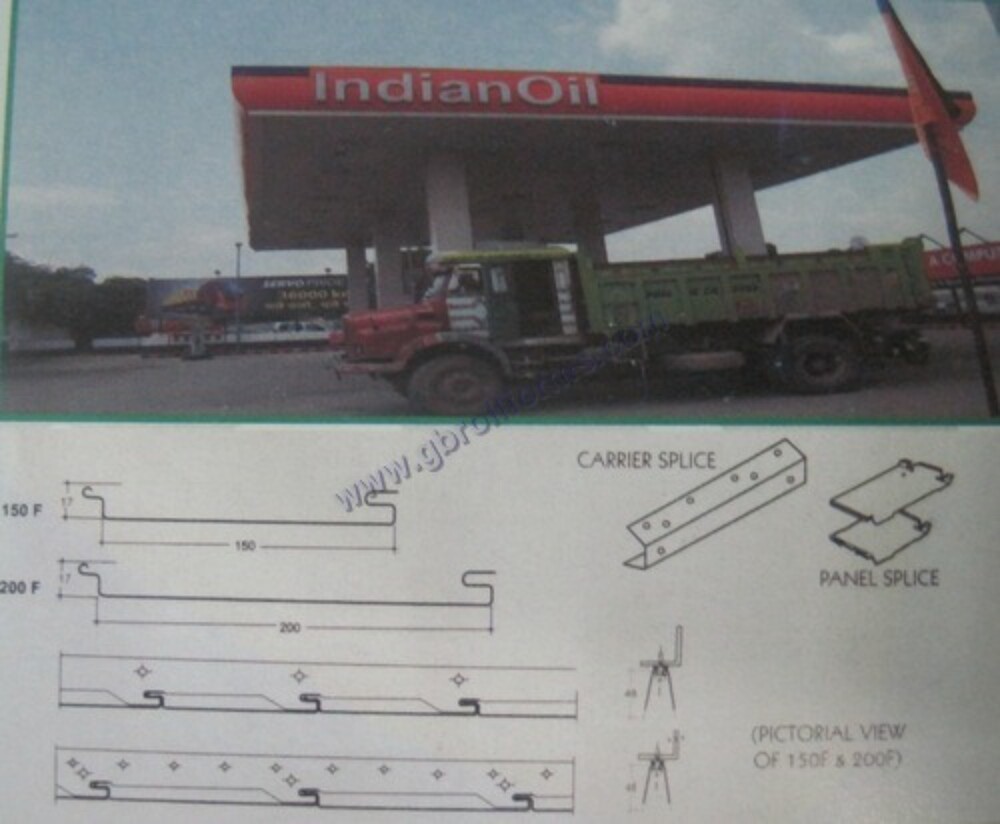

• Material/Panels: 150/200mm wide x 17mm deep, made out of 0. 60mm aluminium alloy AA 3105/5050 with stove enamelled coil coated finish/0.50mm galvanished steel (120gsm/180gsm zinc coating) with stove enamelled coil coated finish. Panel length up to approx. 5m
• Stringers: 34.5mm wide, 48mm deep made out of 0.95mm aluminium alloy AA 5052/0.60mm galvanised steel, with prongs to hold the panels in module of 150mm
• Suspension: By means of rigid suspension angle/rods or mounted on a steel sub-structure
• Panel Span: 1000mm max.
• Stringer Span: 1000mm max, spacing of suspension angles.
• Finish: Panels will be finished on exposed side with coil coated stove enamelled PVF2/Polyurethane/SMP paint with a wash coat on rear side.
